Graphs
Graphs are good for condensing data points into a visualization.
Graphs are great for condensing data points into a visualization.

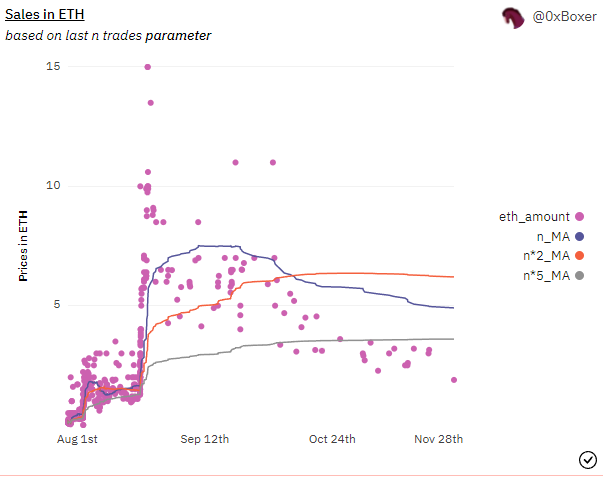

a graph with mixed line and scatter graphs

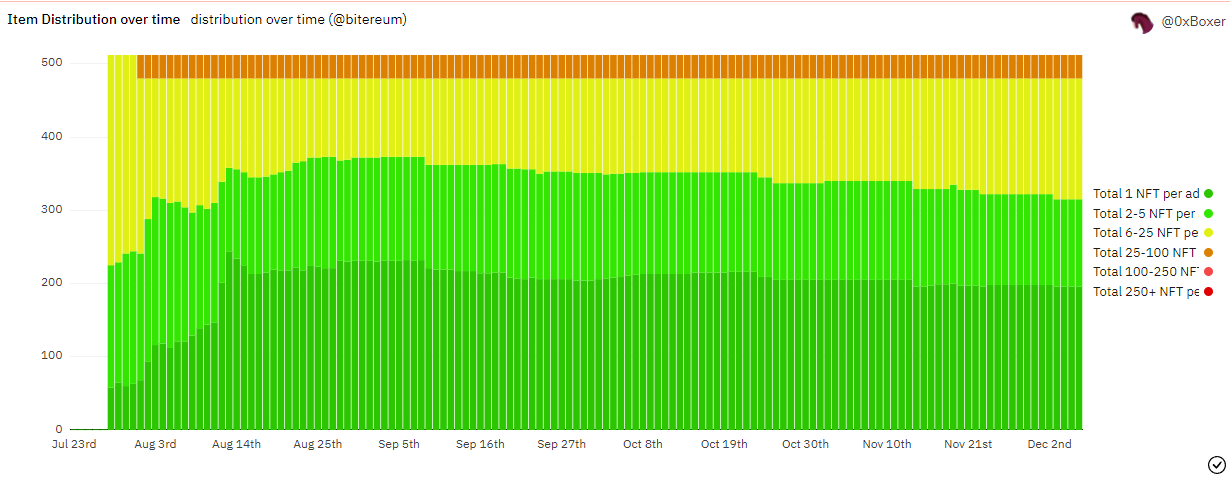

a stacked bar chart

Dune offers you to create the following graph types:

  • bar charts
  • area charts
  • scatter charts
  • line charts
You can mix all of these graph types together in one visualization.

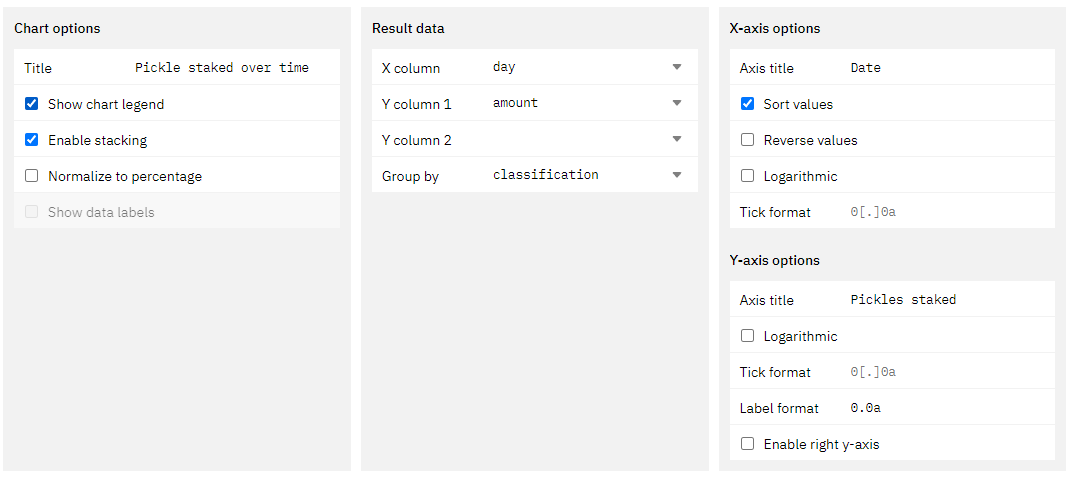

Configuring your visualizations

All graph visualizations share a common editing schema.
In essence, you can define your visualization in detail here. The three different sections of this are explained below.

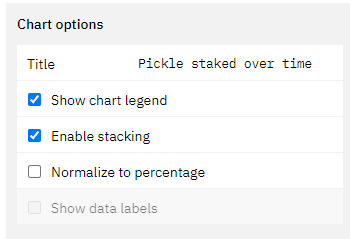

Chart options

This section allows you to define how to display your data.
see explanations below
Title
  • The title will appear in all instances of this graph prominently at the top.
  • The graph will always keep the name of the query, even if you edit this.
  • Show chart legend
  • Ticking this box will enable or disable the legend for the chart.
  • Enable stacking
  • If applicable, ticking this box will stack the chart values on top of each other based on the x-axis values.
  • If this is not turned on, the values will be plotted individually on the y-axis.
  • The calculation underpinning this will always group the value corresponding to one value on the x-axis. Make sure your data is clean in able for this to work (avoid gaps in your data).
  • Normalize to percentage data
  • This will normalize the chart to display percentage values of the chosen data table.
  • The calculation underpinning this will always group the value corresponding to one value on the x-axis. Make sure your data is clean in able for this to work (avoid gaps in your data).
  • Show data labels
  • Ticking this box leads to the display of the individual datapoints inside of the graph.
  • This only makes sense in cases where you have few datapoints that are spread out far enough from each other to not overlap.

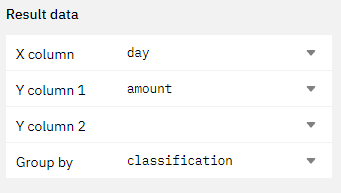

Result data

Here you can pick the data points that are to be displayed.
see explanations below
You can choose one x-axis and multiple y-axis.
Alternatively, you can also choose one data series on the y-axis and choose to group it by a different column of your table (as shown in the example above).

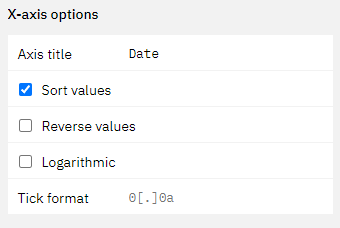

X-axis options

Using these options you can influence how your x-axis data gets displayed.
see explanations below
Axis title
  • This field allows you to specify a title for your x-axis.
  • Sort Values
  • by ticking this box you can specify if you want the values in your chart to be ordered.
  • If your x-axis is a timeseries, this will automatically happen.
  • Reverse value
  • Ticking this box will reverse the order of the values on the x-axis.
  • Logarithmic
  • Ticking this box will make your x-axis values display logarithmically.

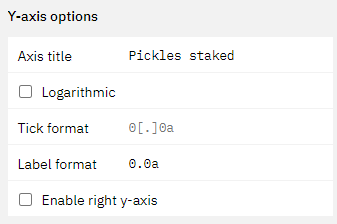

Y-axis options

With these options you can influence how your x-axis data gets displayed.
see explanations below
Axis title
  • This field allows you to specify a title for your y-axis.
  • Logarithmic
  • Ticking this box will make your x-axis values display logarithmically.
  • Enable right y-axis
  • Ticking this box will enable an additional y-axis that you can plot values on.
  • You can choose in the chart series section what you want to be displayed on the left and right axis.

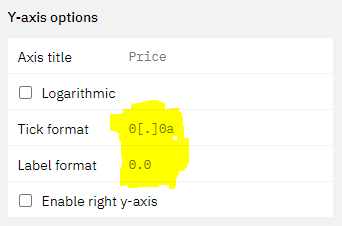

Tick formats

Tick formats will change how values in your chart and the axis labels will get displayed.
It follows this logic:
Value
Tick format
Output
Description
1256784.3745
left blank
1256784,3745000
Display the full number and 7 decimals
1256784.3745
0
1256784
Only Display whole numbers
1256784.3745
0,0
1,256,784
Only displays whole numbers with comma separator
1256784.3745
0,0.00
1,256,784.38
Displays the value with decimals points according to the count of zeroes after the dot
1256784.3745
0[.]0a
1.2m
Displays the value in an abbreviated format.
Will display decimals of the abbreviated number according to count of zeroes after the dot.
1256784.3745
$0[.]0a
$1.2m
Adheres to the same methods as before, but adds a $ prefix.

Ordering your series

In this section of the visualization editor you can finalize your graph.
  • You can rename the "series" by simply clicking into the field.
  • You can change the chart type by clicking into the dropdown.
  • You can change the colors by clicking into the color box.
  • Finally you can also change the order of the series.

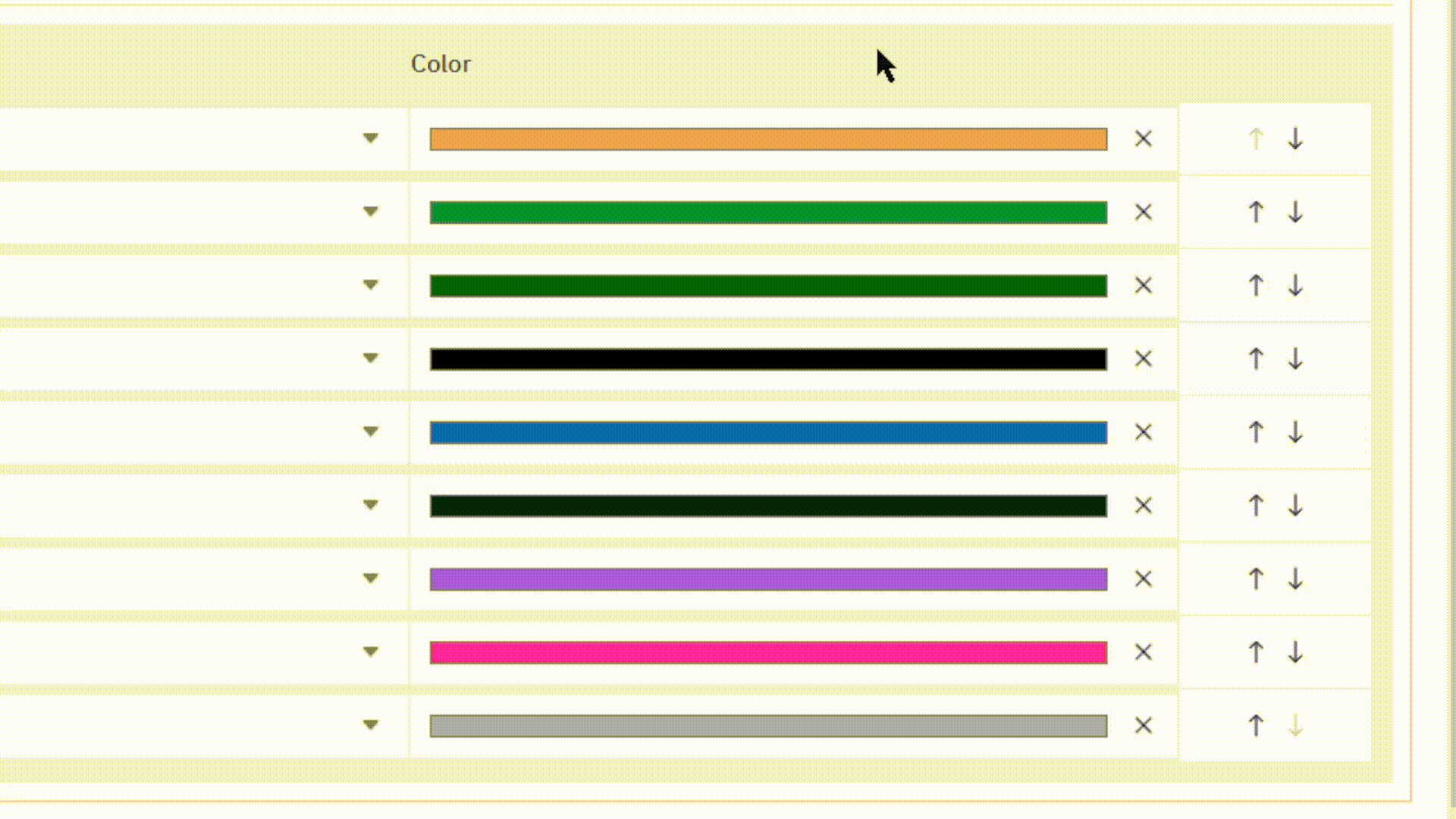

Picking Colors

You can pick colors with your browser native color selector.
This might look slightly different for you depending on which browser you use.
Choose any color you want!
